🔍 OptiX AI – Athena Query Analyzer

⚡Executive Summary

OptiX AI solved an enterprise-wide Athena cost crisis by transforming query optimization from a manual, reactive process into an automated, AI-powered platform. Processing millions of queries across multiple AWS accounts, it reduced query costs by 70%, improved performance by 3x, and saved customers over $2M annually. while freeing data engineering teams from manual optimization work and enabling proactive cost management at scale.

📋Situation

The Enterprise-Wide Problem

Enterprise customers running thousands of Athena queries daily faced an organizational cost crisis: unoptimized queries were driving unpredictable cloud costs into the millions, while data engineering teams spent countless hours manually identifying and fixing problematic queries. This wasn't a query problem. it was a platform-level cost management problem affecting every analytics workload at scale.

The Business Challenge

The query optimization crisis manifested across the entire data organization:

• Cost Explosion: Unoptimized queries scanning unnecessary data, leading to unpredictable costs reaching millions annually
• Performance Issues: Slow queries impacting business-critical analytics and blocking decision-making
• No Visibility: No centralized way to identify problematic queries across multiple AWS accounts
• Manual Bottleneck: Data engineers spending hours manually analyzing and rewriting SQL for each issue
• Reactive Firefighting: Teams only discovering cost issues after monthly bills arrived, too late to prevent waste
• Governance Gaps: Unable to enforce best practices or track improvements across teams

🎯Task

The Challenge: Scaling Query Optimization Across Millions of Queries

The core challenge wasn't building an analyzer. it was solving an organizational cost management problem that required:

• Multi-Account Scale: Process millions of query records across multiple AWS accounts without impacting production workloads
• Dual Optimization Approach: Provide both automated best-practice recommendations and AI-powered deep analysis for different optimization needs
• Real-Time Analytics: Near real-time insights while handling high-velocity data ingestion from continuous query execution
• Actionable Intelligence: Not just identify problems. provide specific, implementable solutions with expected cost savings
• Self-Service at Scale: Enable data engineers and analysts to optimize queries without deep AWS expertise
• Proactive Cost Management: Shift from reactive firefighting to proactive cost optimization and governance

⚙️Action

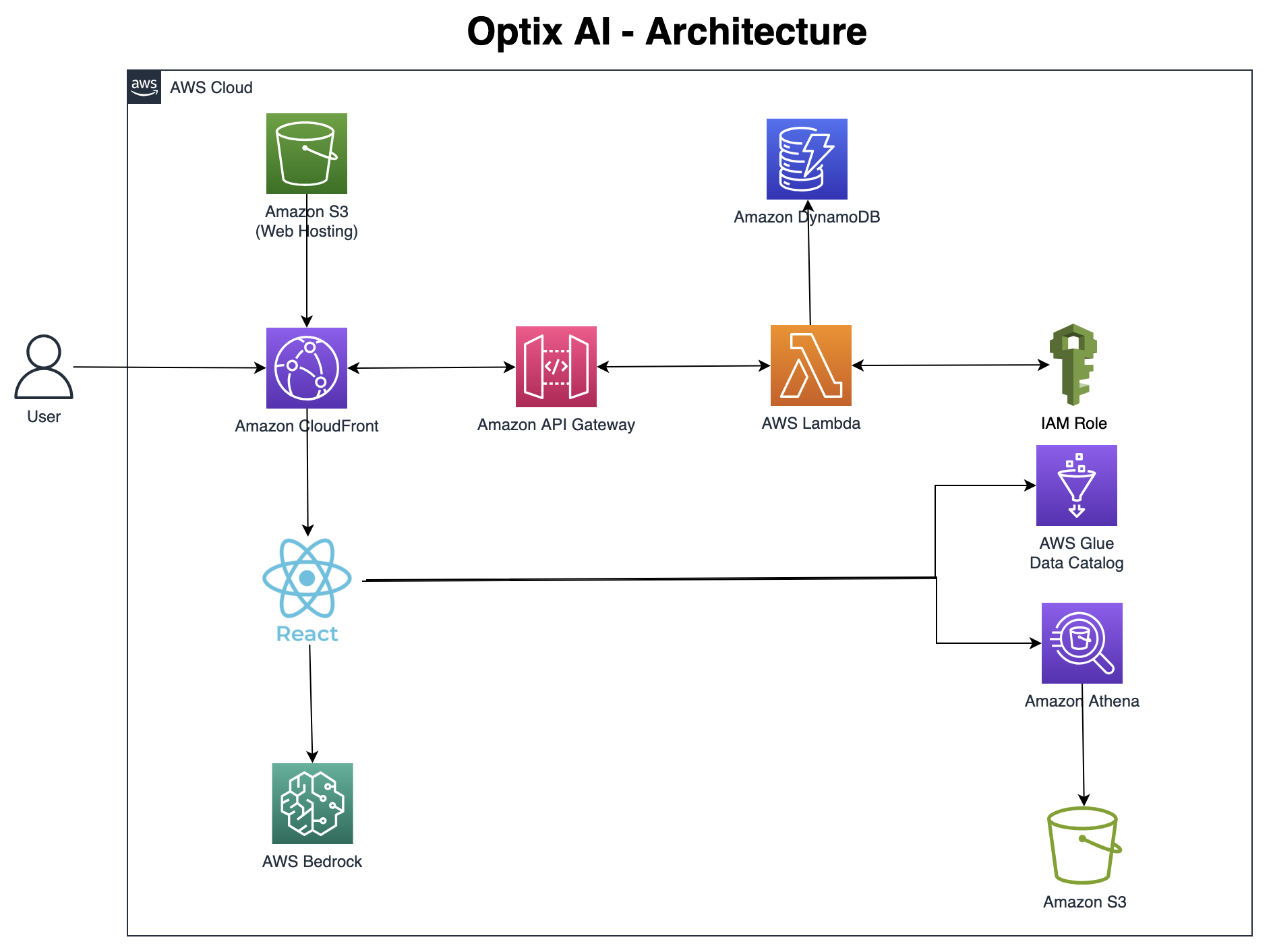

The Architecture

OptiX AI was built on a modern, serverless AWS architecture designed for scale, performance, and cost-efficiency:

Key Architecture Highlights

• Global Content Delivery: CloudFront serves React application from S3 with low-latency access worldwide
• Credential Management: Lambda assumes IAM roles to provide temporary AWS credentials to frontend for direct service access (STS-based, per-user scoped, short-lived, read-only analytics permissions)
• Direct AWS Integration: React app uses temporary credentials to call Glue, Athena, and Bedrock directly, reducing latency
• Dual Optimization Engine: Automated best-practice recommendations plus optional AI-powered analysis using Amazon Bedrock
• Activity Tracking: DynamoDB logs user activities and optimization results for analytics and audit trails
• Metadata Discovery: Real-time schema fetching from Glue Data Catalog for database and table information

Technology Stack

Key Architectural Decisions

1. Serverless Frontend Delivery

• CloudFront + S3: Global content delivery with low latency, automatic scaling, and cost-effective static hosting for React application
• Edge Caching: Reduced load times for users worldwide through CloudFront's edge locations
• Secure Access: Origin Access Identity (OAI) ensures S3 bucket is only accessible through CloudFront

2. Credential Management & Security

• Temporary Credentials: Lambda assumes IAM roles to provide short-lived AWS credentials to React frontend
• Least Privilege Access: Scoped IAM permissions ensure users only access authorized Athena workgroups and Glue databases
• API Gateway Integration: Centralized authentication and authorization layer for all backend operations

3. Direct AWS Service Integration

• Client-Side AWS SDK: React app uses temporary credentials (obtained via Lambda/STS) to directly call Glue, Athena, and Bedrock, reducing latency and backend complexity
• Schema Discovery: Real-time metadata fetching from Glue Data Catalog for database and table schemas
• Query Execution: Direct Athena API calls for fetching query history and execution details

4. Dual Optimization Approaches

• Best Practices Engine: Automated analysis based on Athena best practices (partitioning, file formats, compression, data types)
• AI-Powered Optimization: Optional Bedrock integration for context-aware query analysis and intelligent recommendations
• User Choice: Users select approach based on needs. quick fixes or deep analysis with detailed explanations

5. Activity Tracking & Analytics

• Usage Logging: Asynchronous capture of user activities and optimization patterns
• Performance Metrics: Track optimization success rates and cost savings over time
• Audit Trails: Complete history of query optimizations for compliance and analysis

6. Natural Language Query Generation

• NL to SQL: Users describe queries in plain English, and Bedrock generates optimized SQL queries
• Schema-Aware: AI understands database schemas from Glue to generate contextually accurate queries
• Multiple Options: Generates 3-4 query variations with different optimization approaches

7. Pre-built Query Templates

• Template Library: Curated collection of optimized query patterns for common use cases
• Categorized: Organized by complexity and use case (aggregations, joins, partitioning, window functions)
• Customizable: Users can adapt templates to their specific schemas and requirements

Trade-offs & Design Decisions

📊Result

Business Outcomes

Platform-Level Impact at Scale

• Eliminated Cost Waste: 70% query cost reduction across all customers prevented millions in unnecessary cloud spend annually
• Accelerated Analytics: 3x performance improvement enabled faster business insights and data-driven decision-making
• Transformed Engineering Productivity: 85% reduction in manual optimization time freed data teams to focus on strategic initiatives instead of SQL tuning
• Proactive Cost Management: Shifted from reactive firefighting to proactive optimization, preventing cost overruns before they occurred
• Democratized Optimization: Business analysts with limited SQL expertise could now optimize queries using natural language and AI recommendations
• Established Best Practices: Query templates and AI suggestions created organizational standards, improving code quality across teams
• Scaled Across Workloads: Single platform processing millions of queries daily across multiple AWS accounts without human intervention

🎥Demo Video

Watch OptiX AI in action - see how it identifies costly queries, provides AI-powered optimization suggestions, and delivers actionable insights:

💡Key Learnings & Best Practices

Technical Insights

• Dual Optimization Approach: Combining automated and AI methods serves different optimization needs effectively
• Client-Side AWS Integration: Direct AWS SDK calls from React with temporary credentials reduces latency and backend complexity while maintaining security through scoped IAM permissions
• Serverless Architecture: CloudFront, Lambda, and DynamoDB provide automatic scaling, pay-per-use pricing, and global performance without infrastructure management overhead
• Cost Attribution Accuracy: Precise cost calculation requires deep understanding of Athena pricing model, including data scanned, compression ratios, and file formats

Product & UX Insights

• Progressive Disclosure: Start with simple visualizations and allow users to drill down into details - don't overwhelm with complexity upfront
• Actionable Insights: Users need more than just identification of problems - provide clear, implementable solutions with expected outcomes
• Multi-Persona Design: Solution must serve both technical data engineers (who want raw data and SQL) and business analysts (who need visual insights and natural language)
• On-Demand AI Processing: Real-time AI recommendations provide fresh, context-aware optimizations that users can immediately apply and validate
