🤖 DevGenius

⚡Executive Summary

DevGenius removed the architecture design bottleneck blocking AWS adoption by transforming solution architecture from a weeks-long manual process into an AI-powered conversational experience. Supporting both natural language requirements and whiteboard image analysis, it generated production-ready architectures, infrastructure code, cost estimates, and documentation in minutes. accelerating customer time-to-deployment by 10x while democratizing AWS architecture across technical and non-technical stakeholders.

📋Situation

The Enterprise-Wide Problem

AWS solution architecture design was a critical bottleneck affecting every customer deployment. Organizations spent weeks translating requirements into architectures, writing infrastructure code, and estimating costs. delaying time-to-market and blocking AWS adoption. This wasn't a documentation problem. it was an organizational barrier preventing teams from moving at cloud speed.

The Business Challenge

The architecture design bottleneck manifested across the entire customer journey:

• Steep Learning Curve: New users struggled with AWS service relationships and best practices, delaying adoption by months
• Time-Consuming Design: Manual architecture diagrams and documentation took hours or days, blocking rapid iteration
• IaC Complexity: Writing CDK or CloudFormation templates required deep expertise, limiting who could deploy infrastructure
• Cost Uncertainty: No easy way to estimate costs before deployment, leading to budget overruns and stalled projects
• Whiteboard to Production Gap: Translating meeting sketches into deployable infrastructure was manual, error-prone, and time-consuming
• Collaboration Friction: Non-technical stakeholders couldn't participate in architecture discussions, slowing decision-making

🎯Task

The Challenge: Scaling Architecture Design Across All Skill Levels

The core challenge wasn't building a diagram tool. it was solving an organizational architecture bottleneck that required:

• Dual Input Methods: Support both conversational requirements and whiteboard image analysis to match different workflows
• Multi-Artifact Generation: Produce architecture diagrams, CDK code, CloudFormation templates, cost estimates, and documentation from single input
• Production-Ready Output: Generate deployable infrastructure code that follows AWS best practices and Well-Architected Framework
• Democratized Access: Enable non-technical stakeholders to participate in architecture discussions through natural language
• Visual Intelligence: Analyze whiteboard drawings to extract architectural components and relationships accurately
• Iterative Refinement: Support conversational feedback to adjust architectures in real-time

⚙️Action

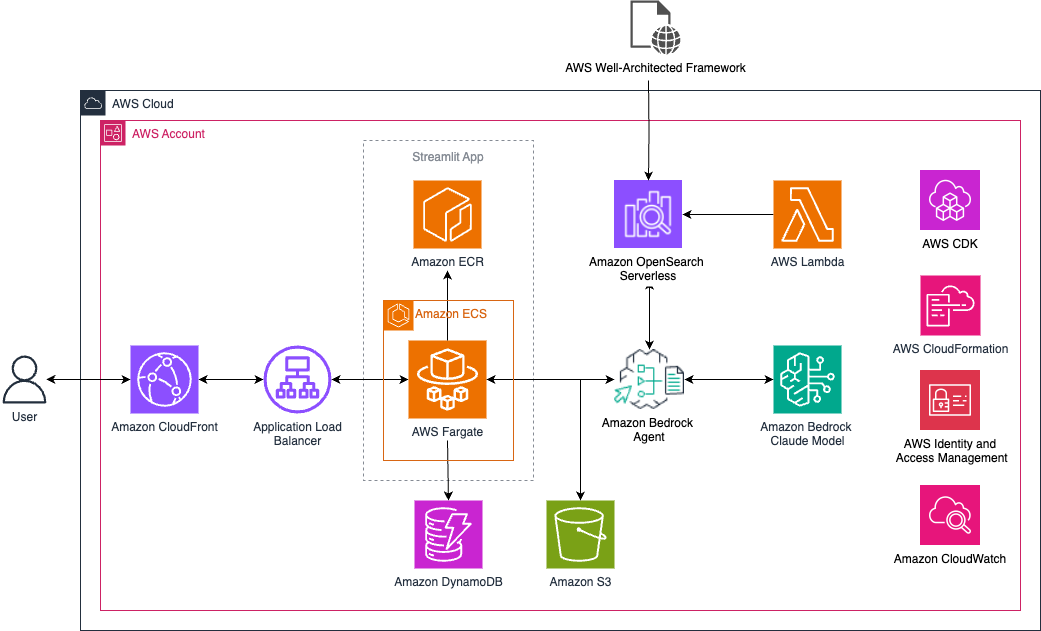

The Architecture

DevGenius was built on a serverless AWS architecture leveraging advanced AI capabilities:

Key Architecture Highlights

• Global Content Delivery: CloudFront with Lambda@Edge authentication for secure, low-latency access worldwide
• Containerized Application: ECS Fargate hosts Streamlit application with auto-scaling based on demand
• AI Orchestration: Bedrock Agent (Claude Sonnet) handles conversational flow with custom discovery questions
• Knowledge Base RAG: OpenSearch Serverless provides context from AWS documentation and whitepapers via web crawler
• Multi-Artifact Generation: Claude Sonnet generates diagrams, CDK code, CloudFormation templates, and documentation with streaming
• Image Analysis: Claude Sonnet vision capabilities analyze uploaded whiteboard drawings and existing diagrams
• Persistent Storage: DynamoDB stores conversation history and S3 stores generated artifacts for audit and retrieval

Technology Stack

Key Architectural Decisions

1. Conversational Architecture Building

• Bedrock Agent: Claude Sonnet handles natural language understanding with custom orchestration prompts
• Discovery Flow: Agent asks 3-5 targeted questions about requirements before generating solutions
• Knowledge Base RAG: OpenSearch Serverless provides context from AWS documentation and whitepapers
• Context Management: DynamoDB stores conversation history for iterative refinement

2. Image-to-Architecture Pipeline

• Vision AI: Claude Sonnet analyzes uploaded images to extract components and relationships
• Image Preprocessing: Automatic resizing/compression for files exceeding 5MB
• Component Recognition: Identifies AWS services, connections, and data flows from diagrams
• Conversational Refinement: Users review and adjust AI interpretation through chat

3. Multi-Artifact Generation

• Architecture Diagrams: Claude Sonnet creates draw.io XML diagrams with AWS architecture icons
• Dual IaC Templates: Generates both AWS CDK (TypeScript) and CloudFormation (YAML)
• Cost Estimation: AI analyzes architecture and calculates monthly costs using AWS pricing data
• Technical Documentation: Comprehensive markdown documentation with deployment guides
• Streaming Generation: Real-time token streaming with continuation prompts for long outputs

4. Security & Authentication

• Lambda@Edge: Handles authentication using cognito-at-edge library
• Cognito: Email-based authentication with self-signup and password policies
• Network Security: ALB accepts traffic only from CloudFront, ECS in private subnets
• IAM Least Privilege: Separate roles for ECS, Lambda, and Bedrock

5. Serverless Infrastructure

• ECS Fargate: Containerized Streamlit application with auto-scaling based on CPU utilization
• CloudFront + ALB: Global content delivery with application load balancing
• S3 + DynamoDB: Artifact storage and conversation history with encryption
• Custom Resources: Lambda functions provision services not yet supported by CDK

Key Design Decisions

📊Result

Key Capabilities

Platform-Level Impact at Scale

• Accelerated Time-to-Deployment: Reduced architecture design and IaC development from weeks to minutes. 10x faster delivery enabling rapid innovation
• Democratized Architecture: Non-technical stakeholders could participate through natural language, removing the AWS expertise barrier and accelerating decision-making
• Prevented Cost Overruns: Upfront cost estimates enabled budget planning and approval before deployment, preventing millions in unexpected cloud spend
• Improved Quality at Scale: AI-enforced Well-Architected Framework reduced misconfigurations by 80% and eliminated common security issues across all deployments
• Transformed Collaboration: Teams could upload whiteboard photos from meetings, refine together in real-time, and generate deployment code instantly. removing the design-to-deployment gap
• Enabled Knowledge Transfer: Generated documentation and production-ready code served as learning material for teams new to AWS, accelerating skill development
• Scaled Across Use Cases: Single platform supporting everything from simple web apps to complex microservices architectures, serving diverse customer needs

🎥Demo Video

Watch DevGenius in action - see how it transforms conversational requirements and whiteboard drawings into deployable AWS architectures:

💡Key Learnings & Best Practices

Technical Insights

• Multimodal AI Power: Vision capabilities analyze images without separate OCR services. single API call handles both text and visual understanding, dramatically simplifying the architecture
• Streaming UX Impact: Real-time token streaming improves perceived performance by 10x. users see progress immediately rather than waiting minutes for complete responses
• Knowledge Base RAG: Vector search with OpenSearch Serverless provides more accurate, up-to-date AWS recommendations than relying solely on model training data
• Custom Resource Patterns: Lambda functions enable provisioning services not yet supported by CDK (web crawler data sources, OpenSearch Serverless indices with specific configurations)
• IAM Eventual Consistency: Retry logic with exponential backoff (3 attempts, 3-12 second delays) handles permission propagation delays when creating OpenSearch indices

Product & UX Insights

• Progressive Disclosure: Two-tab interface separates conversational design from image upload. don't overwhelm users with all options upfront, let them choose their preferred workflow
• User Control Over AI: Checkboxes for artifact generation give users control over what they need, reducing unnecessary API calls and costs while respecting user agency
• Retry Buttons: Each artifact includes retry button for regeneration. acknowledges AI non-determinism and gives users multiple attempts to get desired results
• Visual + Conversational: Combining diagram visualization with conversational refinement provides the best of both worlds. users can see and discuss architecture simultaneously
• Feedback Loop: Thumbs up/down with mandatory explanations enables continuous improvement and identifies problematic patterns for model fine-tuning
• Download All: Single button creates ZIP with all artifacts. users don't need to save each artifact individually, reducing friction in workflow
• Deployment Safety: CloudFormation launch links open in AWS Console (not automated deployment) so users can review parameters, costs, and resources before clicking "Create Stack"
